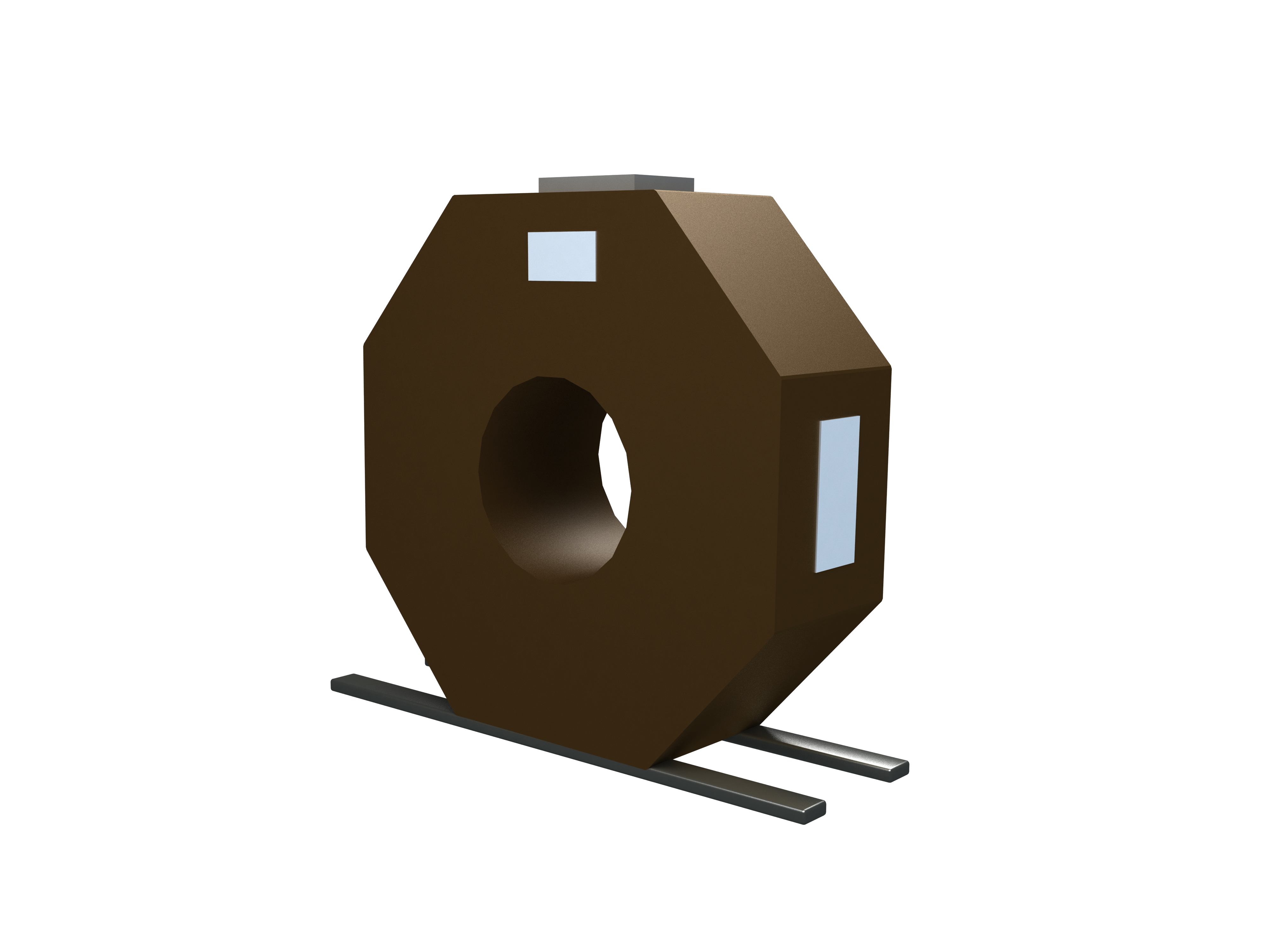

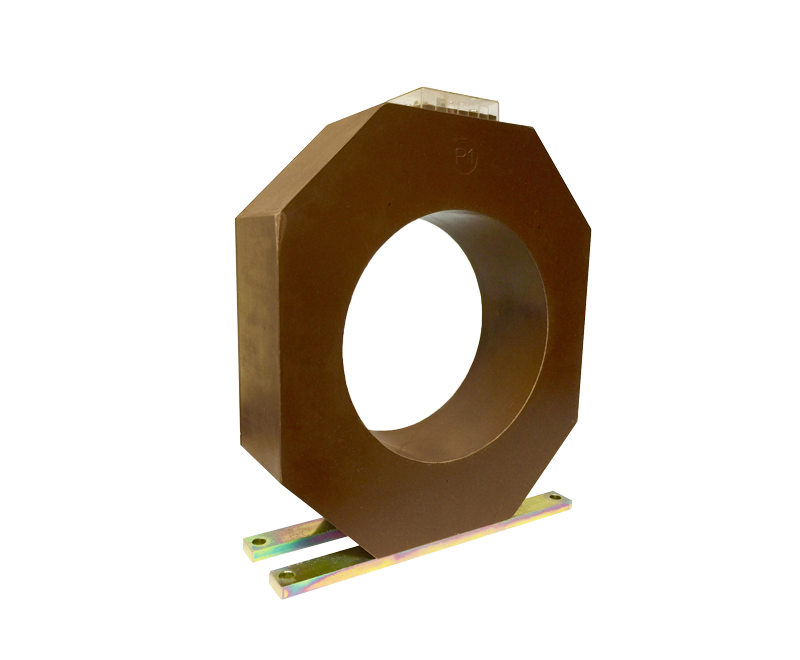

GSA Current Transformer

GSA cast resin current transformers can be used for a variety of measuring, revenue metering (billing) and protection tasks. If the busbar systems or medium voltage cables are sufficiently insulated, these current transformers can be used for insulation levels higher than Um=0,72KV (Highest voltage for equipment Um). The ring-type current transformer for outdoor use is also available on request (GSAF).

General technical data

Rated primary current	20 …. 10000A
Rated secondary current	1A, 5A
Rated frequency	50Hz, 60Hz
Rated burden	According to customers requirements
Accuracy class	According to customers requirements
Rated insulation level	0,72/3/-kV on request)
Rated short-time thermal current	Minimum 100 x In
Standard	VDE, IEC, BC, ANSI, etcetera



Remaining GSA’s Dimensions

Type	b1	b2	b3	h	h1	h2	dmax.	v	sizes*
GSA 135/…	130	130	150	150	75	10	90	9	A-E
GSA 150/…	130	150	150	170	85	10	90	9	A-D
GSA 170/…	150	170	170	185	92,5	10	110	11	A-E
GSA 200/…	180	200	200	235	117,5	10	140	11	A-G
GSA 250/…	230	250	250	290	145	10	150	11	B-G
GSA 300/…	280	300	300	340	170	10	210	11	B-G
GSA 350/…	330	350	350	390	195	10	250	11	B-G
GSA 400/…**	370	400	400	400	200	10	290	11	C-G
GSA 500/…**	440	500	500	500	250	15	350	13	E-G

* See table for the available sizes per GSA-type

** Equipped with one-piece bas plate
